Product Introduction

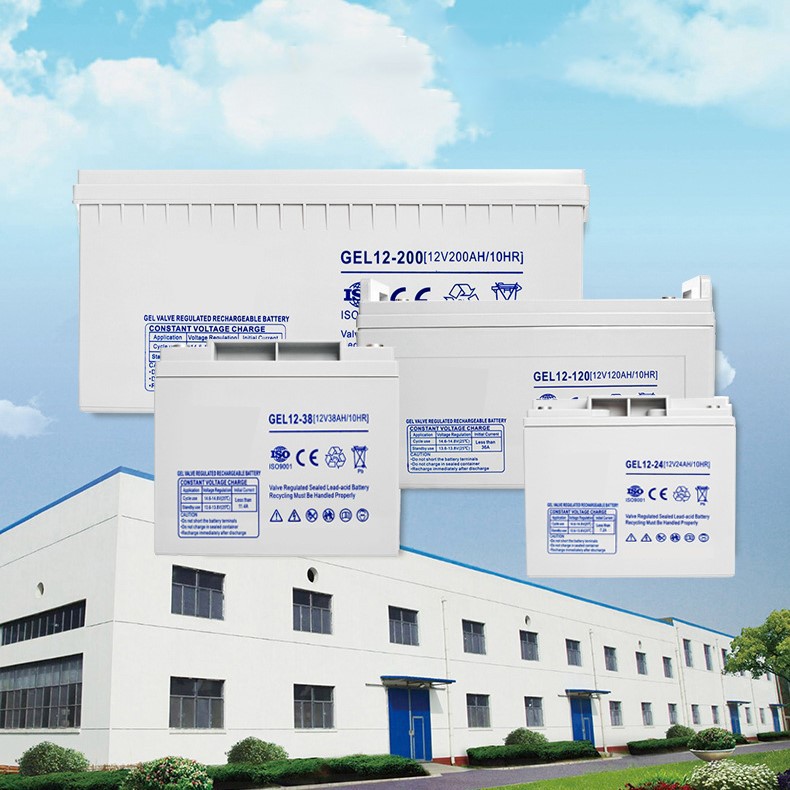

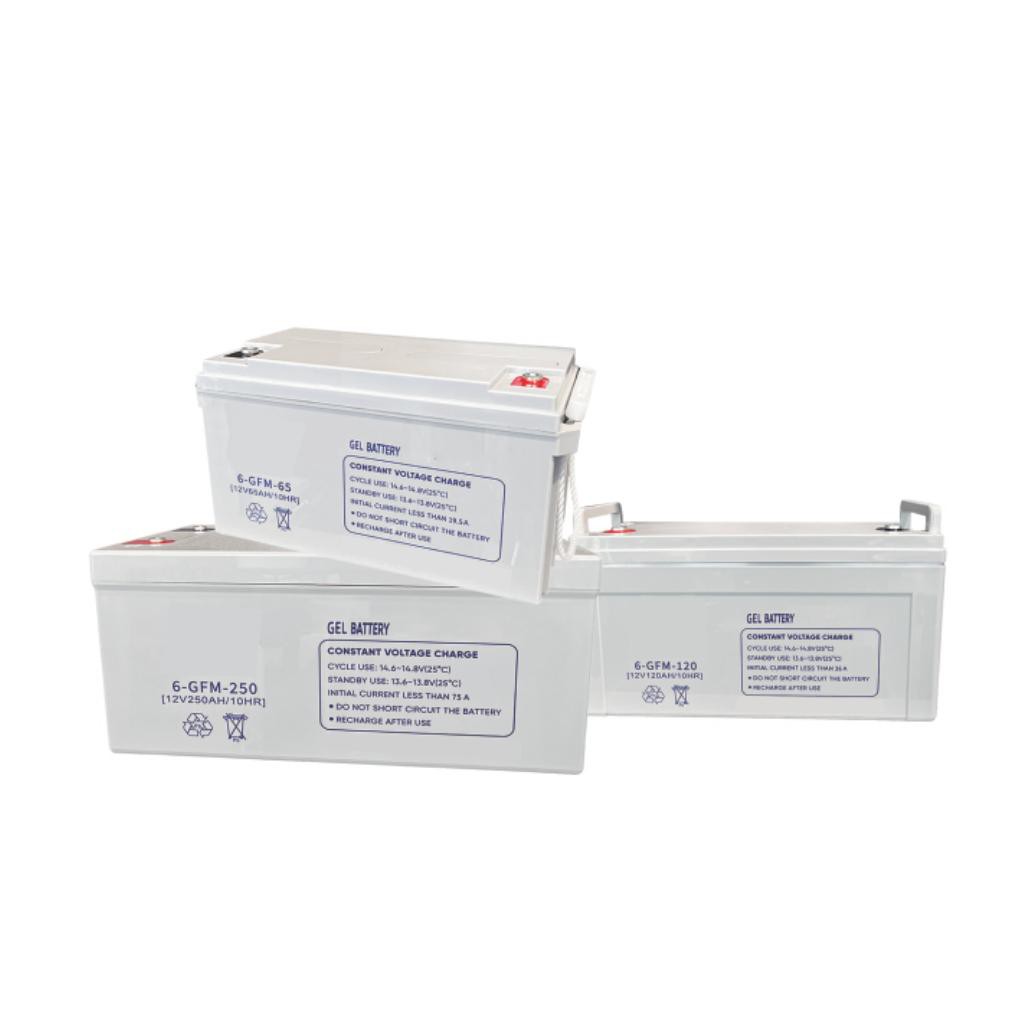

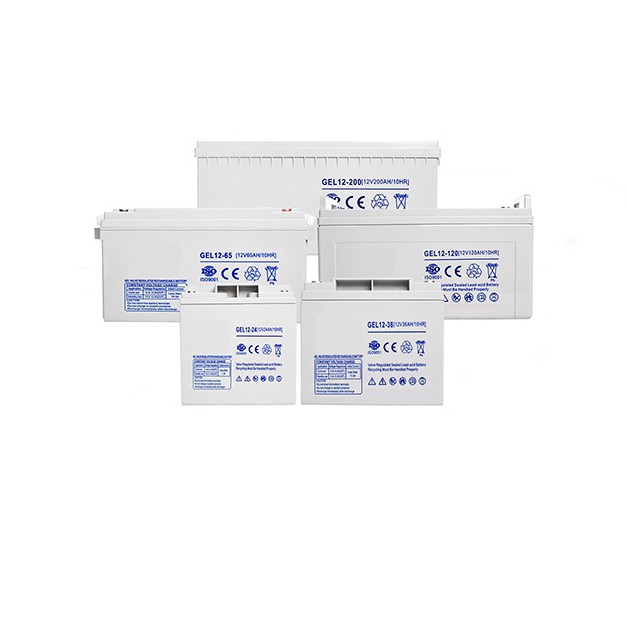

This GEL Battery adopts advanced gelled electrolyte technology, making it a high-performance Deep Cycle Gel Battery ideal for solar energy storage, UPS systems, telecom equipment and off-grid power supplies. As a reliable Maintenance Free Gel Battery, it features a fully sealed structure that prevents acid leakage and requires no water refilling during daily use. With low self-discharge rate, excellent deep-cycle recovery ability and long service life, it performs stably in frequent charge-discharge cycles and adapts well to harsh environments. This GEL Battery delivers consistent power output and strong durability, widely applied in residential solar systems, emergency backup power, security devices and industrial energy storage scenarios. Its rugged design and wide temperature tolerance ensure stable operation, providing safe and long-lasting power support for both commercial and residential users.
Product Features
- Long service life: It has the ability to prevent sulfuric acid delamination and reduce the separation of glue and plate to provide effective oxygen composite channels, and the life is more than 20% higher than that of lead-acid batteries.
- Good over-discharge recovery ability: it has good resistance to plate vulcanization and reduced grid corrosion, and has the characteristics of long storage resistance;
- Good low-temperature performance: the internal resistance of the colloidal battery is slightly larger, but the internal resistance of the colloidal electrolyte does not change much at low temperature, so its low-temperature performance is good, which is more than 20% better than that of lead-acid batteries;
- Good thermal runaway resistance: special separators and colloids are used to effectively dissipate heat and have high recomposite efficiency at high ambient temperatures, effectively preventing thermal runaway;
- Small self-discharge: the use of high-purity raw materials can hinder the generation of water diffusion and inhibit the spontaneous reduction reaction of PBO during cathodic reduction, so the self-discharge is small;
- Good environmental protection and practicability: because the electrolyte is effectively adsorbed in the gel, there is no liquid electrolyte outflow.
Product Parameters
|
Model |
Voltage |
Capacity |
Dimension |
Weight |
Terminal |
||||||||
|
Length |
Width |
Height |
T.Height |
(APPROX.) |
|||||||||
|
(V) |
(Ah) |
(mm) |
(inch) |
(mm) |
(inch) |
(mm) |
(inch) |
(mm) |
(inch) |
(kg) |
(Lb) |
Type |
|
|
6-GFM-17 |
12 |
17 |
181 |
7.13 |
77 |
3.03 |
167 |
6.58 |
165 |
6.50 |
4.95 |
10.89 |
T3 |
|
6-GFM-24 |
12 |
24 |
165 |
6.50 |
125 |
4.93 |
174 |
6.86 |
180 |
7.09 |
7.9 |
17.38 |
T9 |
|
6-GFM-33 |
12 |
33 |
194 |
7.64 |
132 |
5.20 |
172 |
6.78 |
180 |
7.09 |
9.2 |
20.24 |
|
|
6-GFM-38 |
12 |
38 |
198 |
7.80 |
166 |
6.54 |
175 |
6.90 |
182 |
7.17 |
12 |
26.4 |
T9 |
|
6-GFM-55 |
12 |
55 |
229 |
9.02 |
138 |
5.44 |
220 |
8.67 |
210 |
8.27 |
15.5 |
34.1 |
T14 |
|
6-GFM-65 |
12 |
65 |
350 |
13.79 |
166 |
6.54 |
175 |
6.90 |
179 |
7.05 |
19 |
41.8 |
T14 |
|
6-GFM-75 |
12 |
75 |
260 |
10.24 |
169 |
6.66 |
214 |
8.43 |
219 |
8.63 |
28.5 |
62.7 |
T14 |
|
6-GFM-100 |
12 |
100 |
330 |
13.00 |
173 |
6.82 |
216 |
8.51 |
220 |
8.67 |
34 |
74.8 |
T14 |
|
6-GFM-120 |
12 |
120 |
406 |
16.00 |
173 |
6.82 |
237 |
9.34 |
238 |
9.38 |
40.5 |
89.1 |
T14 |
|
6-GFM-150 |
12 |
150 |
485 |
19.11 |
170 |
6.70 |
241 |
9.50 |
242 |
9.54 |
55.6 |
122.32 |
T14 |
|
6-GFM-220 |
12 |
220 |
521 |
20.53 |
238 |
9.38 |
217 |
8.55 |
236 |
9.30 |
71 |
156.2 |
T10 |
|
6-GFM-250 |
12 |
250 |
519 |
20.45 |
267 |
10.52 |
220 |
8.67 |
249 |
9.81 |
15.6 |
34.32 |
T10 |
|
GFM-100-2 |
2 |
100 |
170 |
6.70 |
72 |
2.84 |
205 |
8.08 |
212 |
8.35 |
5.5 |
12.10 |
T5 |
|
GFM-150-2 |
2 |
150 |
172 |
6.78 |
102 |
4.02 |
206 |
8.12 |
226 |
8.90 |
8 |
17.60 |
T5 |
|
GFM-200-2 |
2 |
200 |
172 |
6.78 |
110 |
4.33 |
338 |
13.32 |
360 |
14.18 |
11.2 |
24.64 |
T5 |
|
GFM-300-2 |
2 |
300 |
172 |
6.78 |
150 |
5.91 |
340 |
13.40 |
361 |
14.22 |
17.1 |
37.62 |
T5 |
|
GFM-400-2 |
2 |
400 |
175 |
6.90 |
221 |
8.71 |
336 |
13.24 |
363 |
14.30 |
24 |
52.80 |
T5 |
|
GFM-500-2 |
2 |
500 |
240 |
9.46 |
173 |
6.82 |
338 |
13.32 |
363 |
14.30 |
29 |
63.80 |
T5 |
|
GFM-600-2 |
2 |
600 |
302 |
11.90 |
175 |
6.90 |
340 |
13.40 |
365 |
14.38 |
35.3 |
77.66 |
T5 |
|
GFM-800-2 |
2 |
800 |
410 |
16.15 |
175 |
6.90 |
330 |
13.00 |
365 |
14.38 |
48 |
105.60 |
T5 |
|
GFM-1000-2 |
2 |
1000 |
475 |
18.72 |
175 |
6.90 |
330 |
13.00 |
364 |
14.34 |
55 |
121.00 |
T5 |
|
GFM-1500-2 |
2 |
1500 |
400 |
15.76 |
350 |
13.79 |
340 |
13.40 |
380 |
14.97 |
91 |
200.20 |
T5 |
|
GFM-2000-2 |
2 |
2000 |
490 |
19.31 |
350 |
13.79 |
340 |
13.40 |
382 |
15.05 |
106 |
233.20 |
T5 |
|
GFM-3000-2 |
2 |
3000 |
712 |
28.05 |
350 |
13.79 |
340 |
13.40 |
382 |
15.05 |
164 |
360.80 |
T5 |
Company Introduction

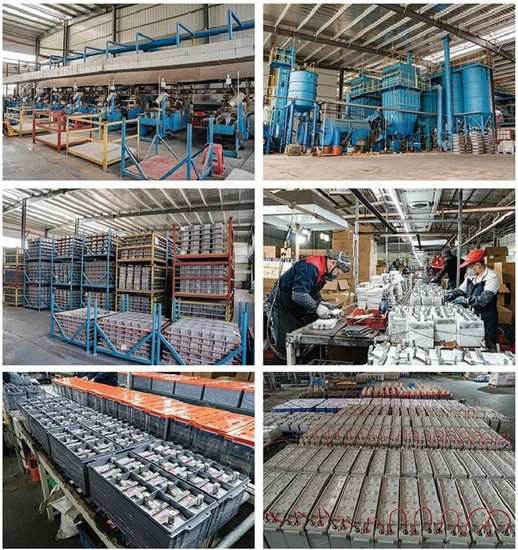

Factory shot

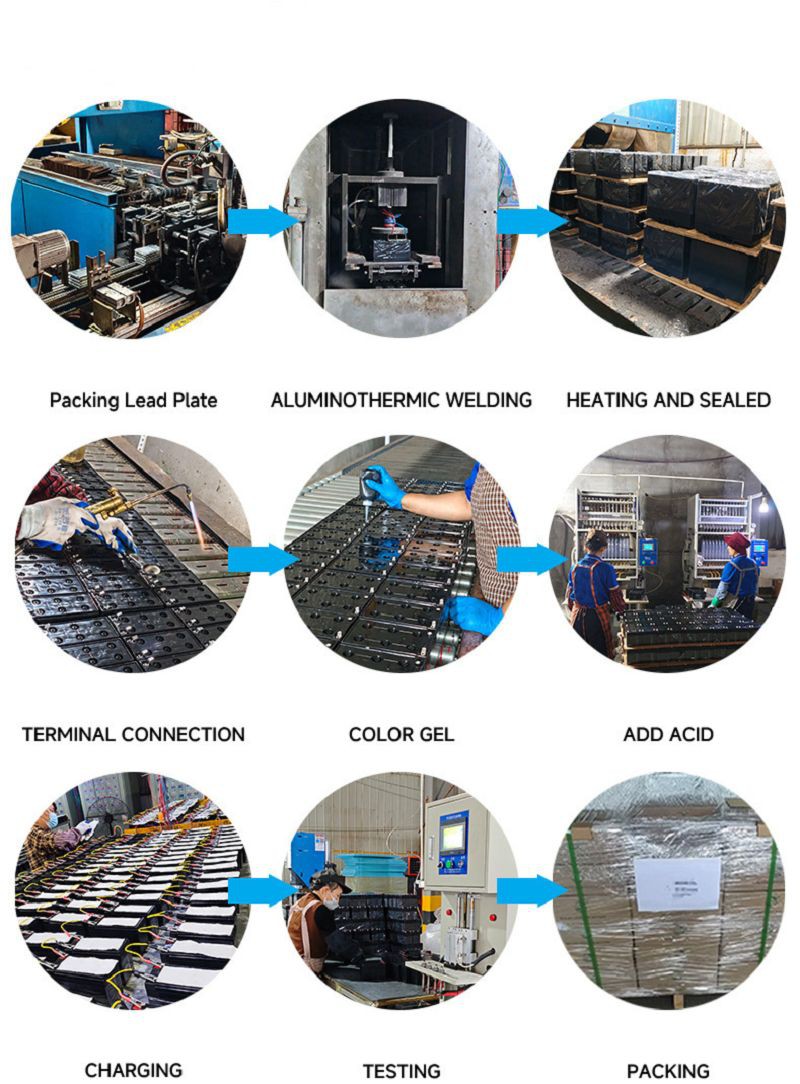

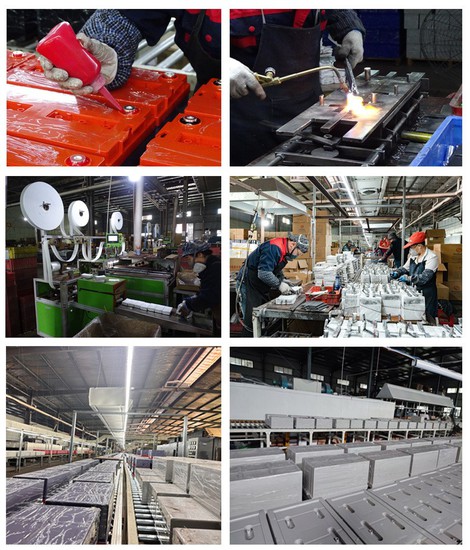

Production process

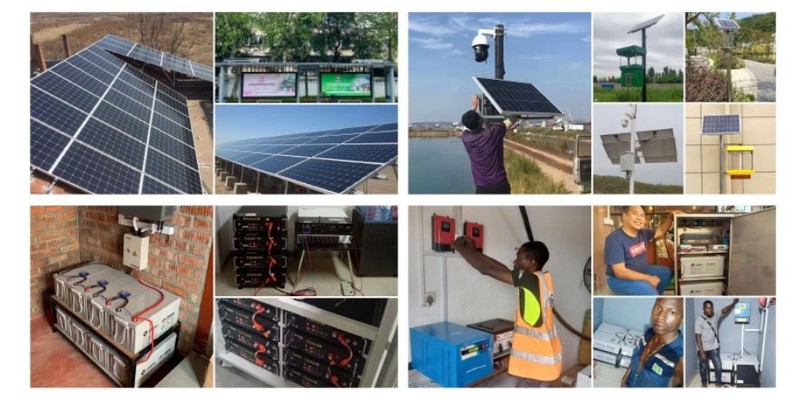

Exit experienced
FAQ
Q: Can you print my logo on the battery cover?
A: Yes, OEM can be provided, we can print your logo on the battery box, and you can provide the logo.
Q: How do you keep solar cells safe?
A: We implement several safety measures. Our batteries are equipped with overcharge protection, over discharge protection, and short circuit protection. Additionally, we use high-quality materials and advanced manufacturing processes to ensure the stability and safety of batteries during operation.
Q: How can you tell if a battery is good or bad?
A: You should first check the battery for faults, such as damaged circuits, short circuits, or damaged containers. If the external problem is not obvious, the capacity of the battery must be checked using known measurement techniques to determine the problem.
