Product Introduction

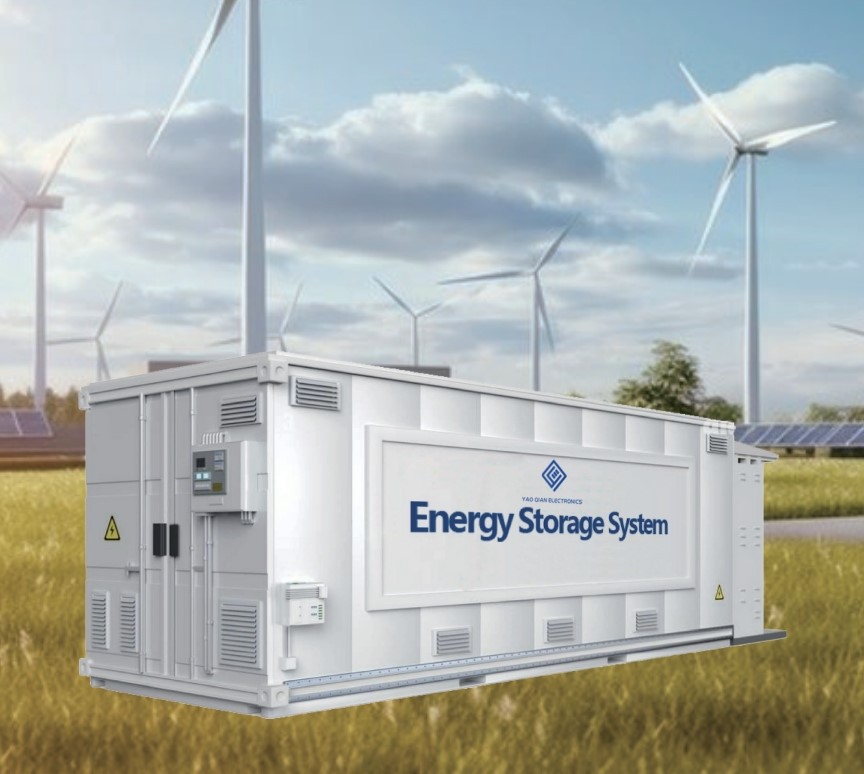

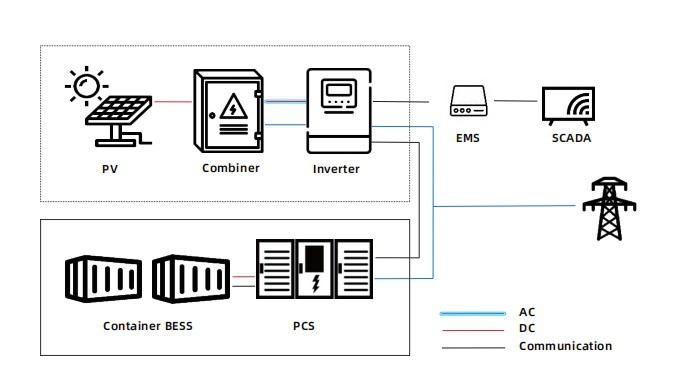

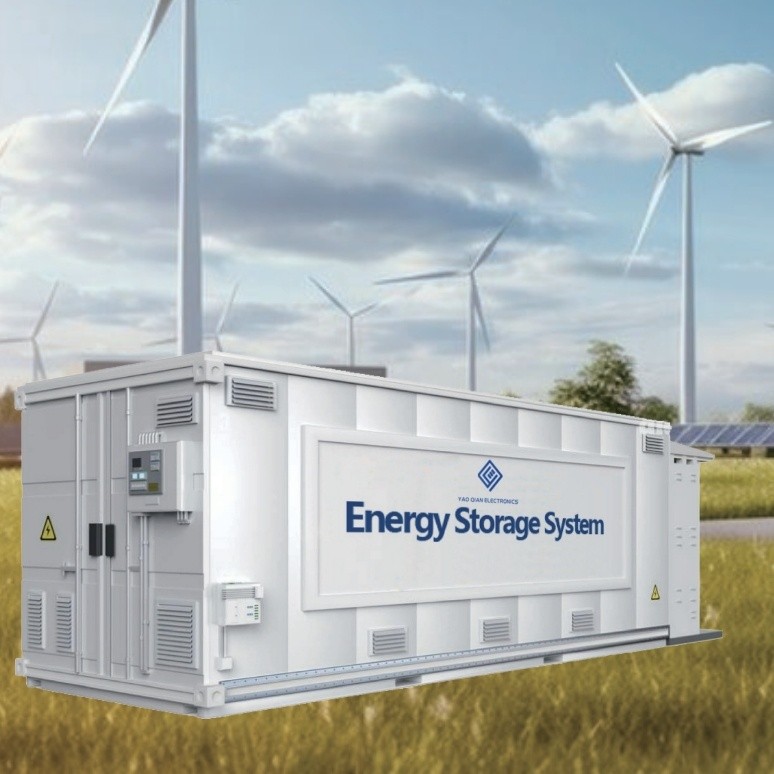

Our Containerized Energy Storage System is an innovative modular energy storage solution, adopting a fully containerized design for easy transportation and quick on-site installation, ideal for remote off-grid areas and space-constrained sites alike. As a high-performance Containerized LiFePO4 battery energy storage system, it's a dedicated Containerized ESS for commercial & industrial use, supporting solar, wind and grid-tied energy storage scenarios, and excels at emergency backup power supply and grid peak shaving applications.
This Containerized Energy Storage System delivers 1~2 MWh usable energy, meeting the core demands of peak shaving, load shifting, renewable energy integration and backup power for factories, industrial parks, commercial buildings and microgrids. Its standardized modular architecture ensures efficient logistics, hassle-free commissioning and flexible expansion, serving as a cost-effective, reliable energy storage solution for all industrial and commercial large-scale energy management needs.
Product Features
- Integrated and standardized energy storage system
- Easy transportation, installation and maintenance.
- Intelligent temperature control, active balance management, effectively improving the efficiency and cycle life of the battery
- Unattended, convenient EMS interface, online real-time system monitoring.
- Using LifePO4 battery, low internal impedance, high rate, high safety and long cycle life.
- Impedance, voltage and capacity of high consistency.
- Cycle life can reach more than 6000 times, the service life is more than 10 years, the comprehensive operation cost is low.
- Uniform temperature distribution across battery cells.
- Higher round-trip efficiency.
- Longer cycle life and enhanced reliability.
- Superior performance in high-temperature regions.
- This advanced thermal architecture ensures consistent operational stability-even in harsh, outdoor environments.
Product Parameters
|
Model |
YQ-20FT |
YQ-40FT |
|
DC side |
||
|
Voltage(V) |
768V |
768V |
|
Rated capacity(MWh) |
1 |
2 |
|
AC side |
||
|
Rated energy(KV) |
500 |
1000 |
|
Rated current/Max. current(A) |
130/150 |
260/280 |
|
Rated voltage (V) |
380(3 phase) |
|
|
Basic parameters |
||
|
IP level |
IP54 |
|
|
Temperature system |
Industrial air conditioning |
|
|
Fire protection system |
Gas fire extinguishing system |
|
|
Calender life |
>10 years |
|
|
Working altitude(m) |
<2000 |
|
|
Communication |
RS485/Ethernet/4G |
|

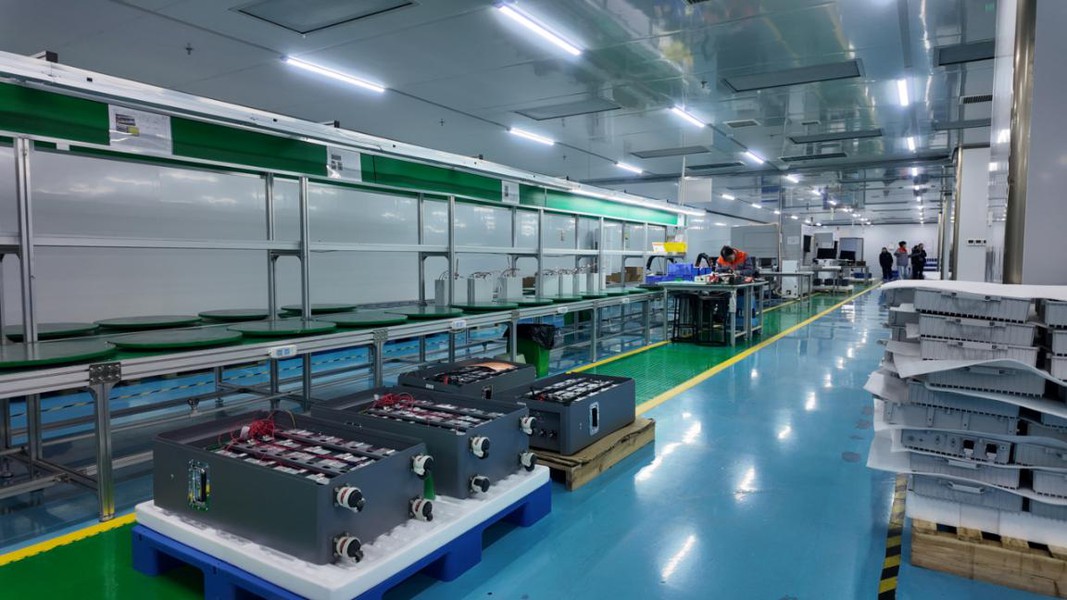

Company Introduction
FAQ
Q: How Does The System Perform Under Extreme Outdoor Conditions?
A: With an IP55 outdoor-rated cabinet, industrial-grade sealing, and advanced liquid-cooling, the system can operate reliably in high-temperature, dusty, humid, and coastal environments.
Q: What Is The Expected Cycle Life Of The Battery System?
A: The system uses Tier-1 LiFePO4 cells with 8000+ cycles, supported by GSL proprietary BMS for extended life cycle management. Actual lifespan depends on operating strategy and ambient conditions.
Q: How is the system monitored and maintained remotely?
A: Our systems come with an intelligent EMS (Energy Management System) and cloud platform, enabling real-time monitoring, configuration, and remote diagnostics via mobile app or web interface for efficient O&M.
